Custom Tube Chassis 1966 Toyota Stout | 650hp 4 Cylinder

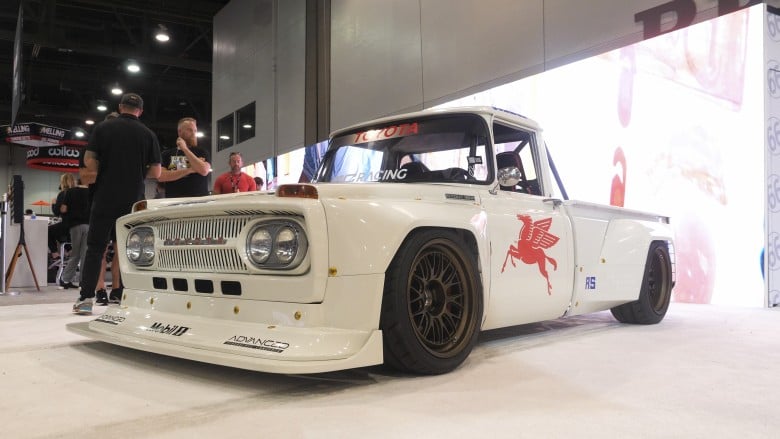

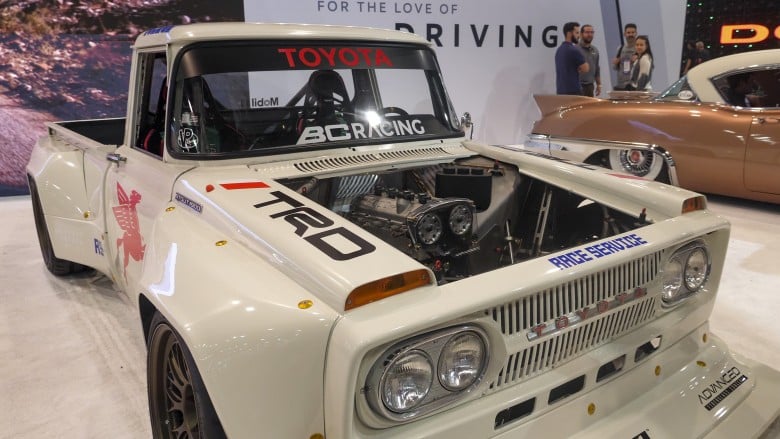

When you think drifting, you also think of a 1966 Toyota Stout right?

Even if you don't, Ryan Tuerck's mate did, so that is what he's built with Toyota TRD and Mobil 1. Moving on from the previous Ferrari-powered GT86 (GT4586) and Formula Supra (Judd V10 powered) time attack builds this drift ute, or drift truck depending on your regional dialect, fell just short of laying rubber at the SEMA show 22', but is tantalisingly close to doing so very soon.

Powered by a 3S-GTE that's also a little bit 5S-FE the power goal of 780-650hp is conservative compared to the 1000hp similar setups can and do run. Power isn't everything though and with 275's on the rear 780hp which is around 450kW will be more than a handful especially given the weight, or lack of, you expect with a build like this.

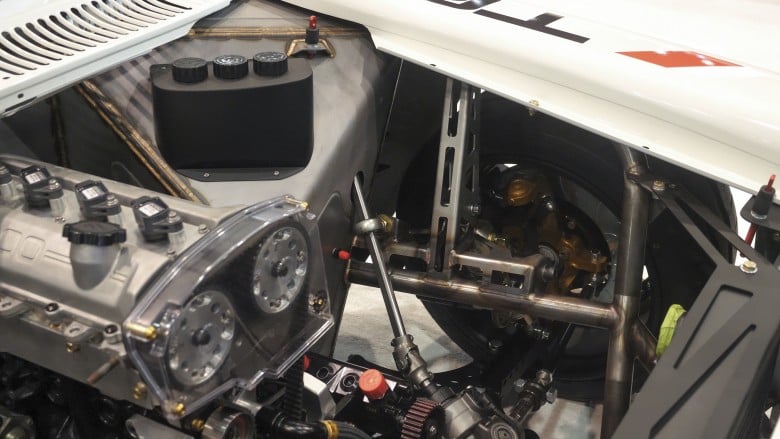

The 3SGTE (MR2, Celica) based build sports a Garrett GTX 770 turbocharger, mild cams, 10:1 compression, non-stroker crank and 87mm bore giving a capacity of 2.1L. The 5S-FE block which is normally 2.2L is used for its increased strength over the 3S and the team hopes to get 3 seasons of runs out of this setup before a refresh is due with John Reed Racing tuning the project.

Electronics are handled by Brian Hartsock and a suite of MoTeC products from the M150 ECU, C1212 dash logger to a PDM30 which will see the car run without fuses or relays, something the Toyota engineers in the 1960's no doubt wouldn't have thought likely all those years ago. Probably weren't expecting 780hp+ rather than the stock 85hp either!

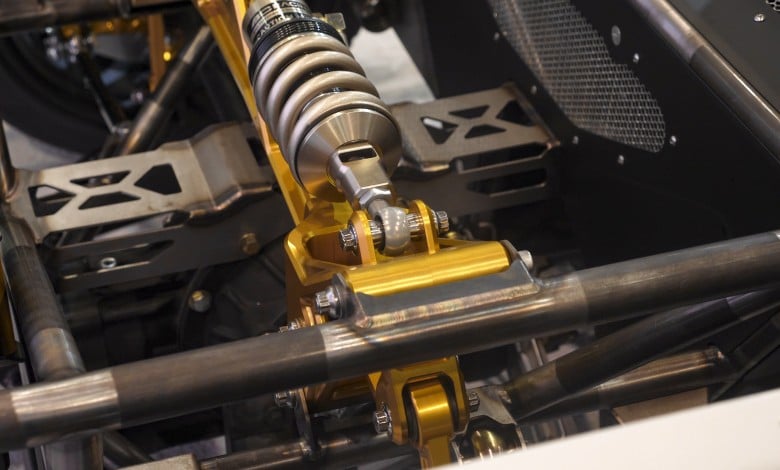

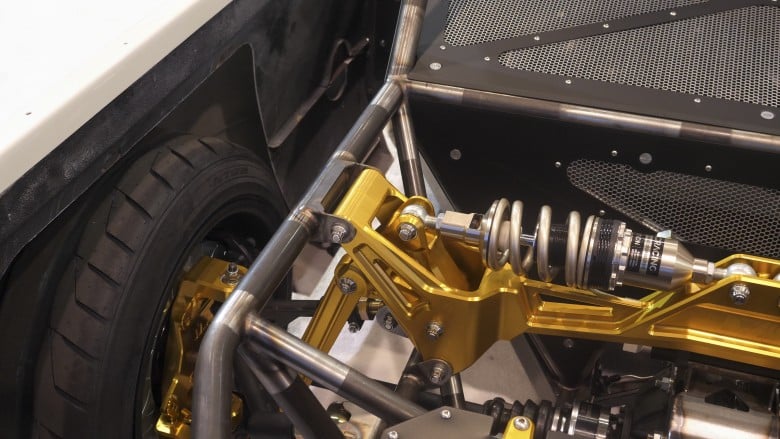

Drivetrain and suspension wise the somewhat classic Holinger Engineering sequential transmission and Winters Performance Products rear end will play nicely with the tried and tested double A arm setup out of a Chevrolet Corvette which should give no nasty surprises and only straightforward setup changes once shakedown runs begin.

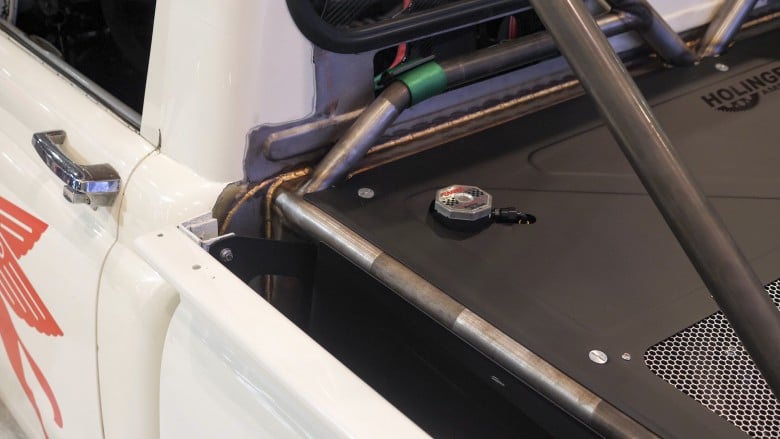

'Sick utes' aka pre-runner aficionados Kibbetech handled the tube frame chassis design and fabrication with CNC support from Bending Solutions (Rob Parsons) with many hours spent in CAD beforehand to give an accurate finished product rather than one that needed some major or minor 'fettling' as is sometimes the case with one off 'build as you go' projects that need more time than was on hand for this particular project.

Jon Sibal has done a great job of helping this vision look awesome not just in the mind but also in the flesh with his work on the body kit which thanks to some laser scanning and great work from ADV Fiberglass has turned out perfect.
